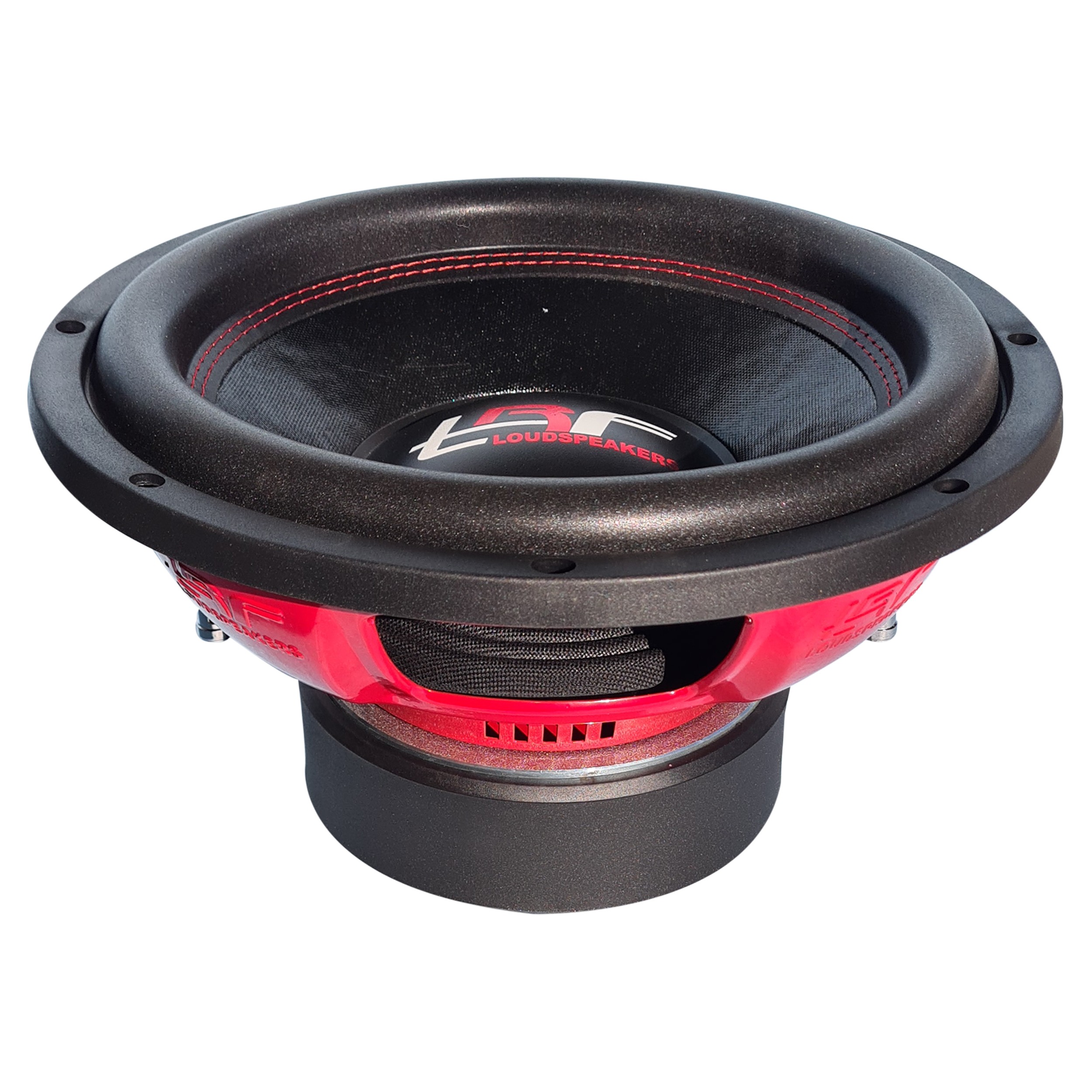

TRF L SW128D2

SPECIFICATION:MODEL:TRF L SW128D2 Size: 12 Cone: Competition  Grade Paper Surround material: Foam Voice coil: 3.0inch Voice coil layer: 4layer Nominal impedance:dual 2ohm Voice coil wire:Copper RMS Power: 800wrms MAX Watt:1600wmax Sensitivity: 86.3dB Resonance frequency(f0): 36.3Hz Mechanical Q factor(Qms): 6.35 Electrical Q factor:(Qes):0.62 Total Q factor:(Qts): 0.57 Xmax: 15mm Force factor: 19.4N/A Magnet Weight: 110 Oz   1=Outer Dimension:  325mm - 12.8" 2=Mounting Depth: 155mm - 6.1" 3=Magnet Dimension: 176mm - 6.90" 4=Mounting Hole Dimension: 280mm.02"
