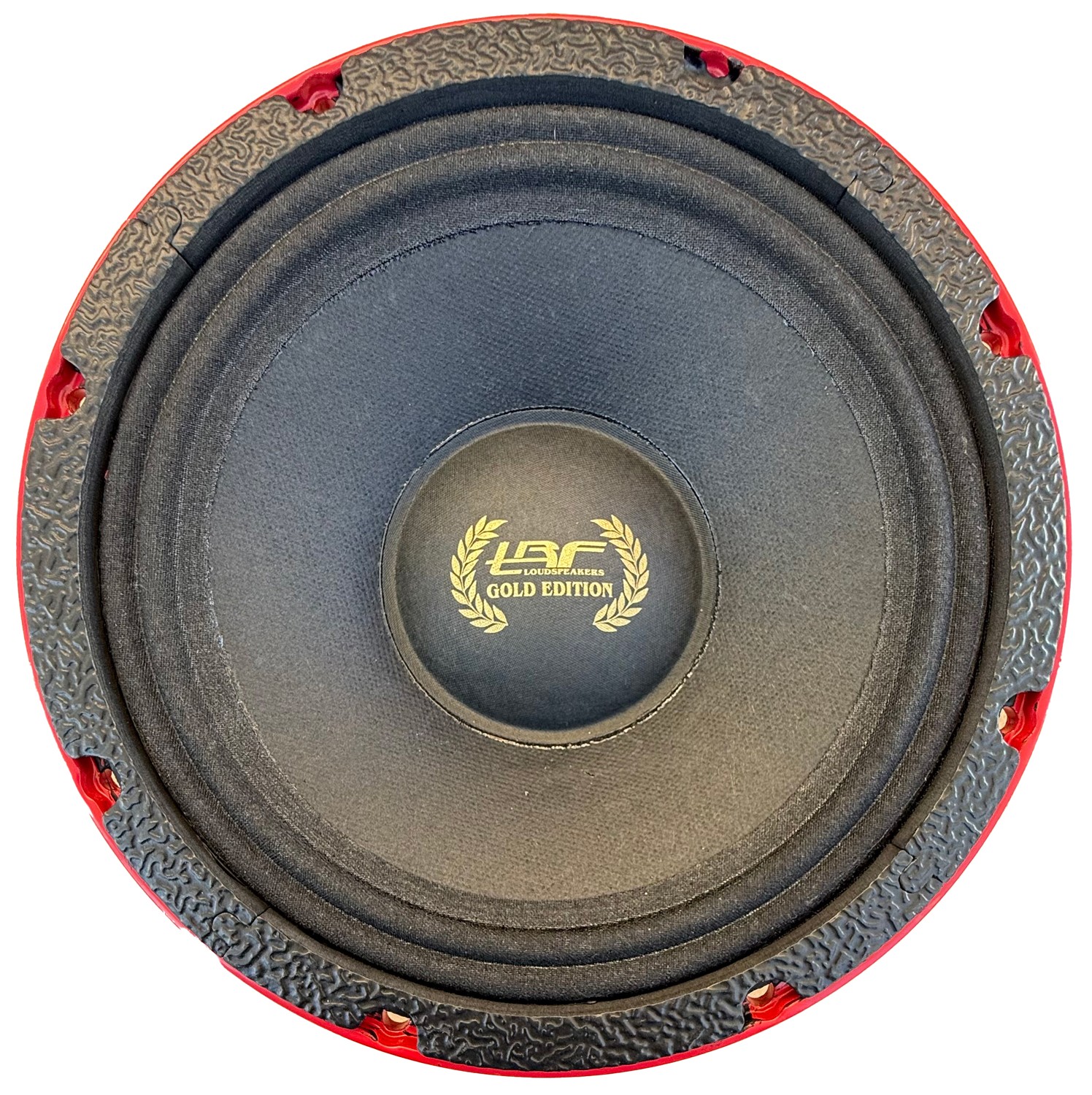

TRF 8MR600ND X4

MODEL: TRF 8MR600ND X4 Nominal diameter:8" (203mm) MAX Power Handling:600W RMS Power Handling:300W Frequency response:110Hz-8KHZ Nominal impedance:4Ω Sensitivity: 100.5 dB magnet: Neodymium Voice coil diameter:2.5" Voice coil wire:CCAW Equivalent volume:Vas 8.7 L Free Air Resonance:Fs 110 Hz Mechanical Factor:Qms 5.70 Electrical Factor:Qes 0.20 Total Factor:Qts 0.20 Cone Area:Sd 216cm Mechanical Mass:Mms 16g BI Factor:BI 13.2Tm Dc Resistance:Re 3.2 Ohms Overall Diameter:8.27"(210mm) Front Mount Baffle Cutout:7.32"(186.7mm) Mounting Depth:3.26"(83mm) Overall Depth:3.62"(92mm)
