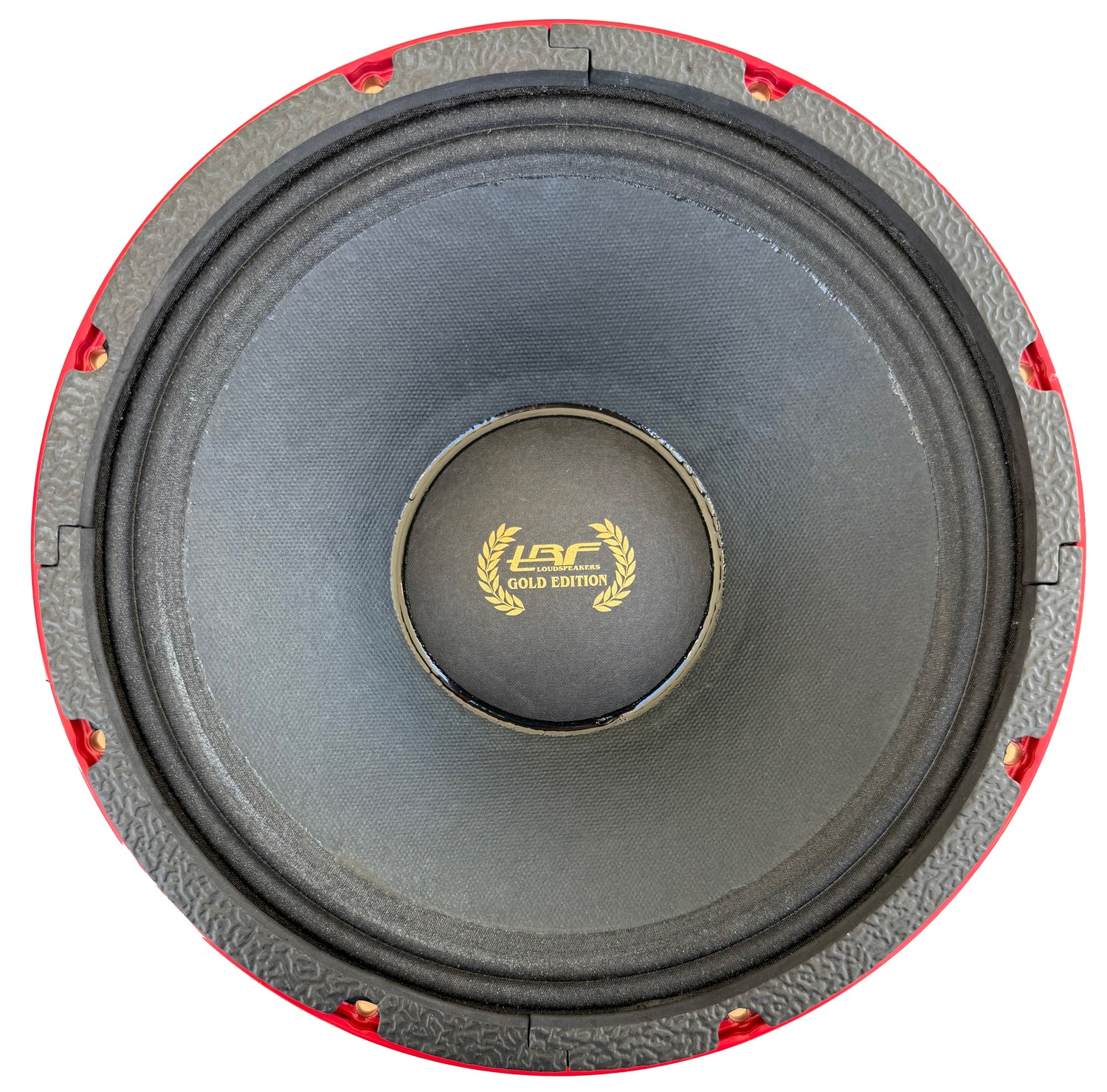

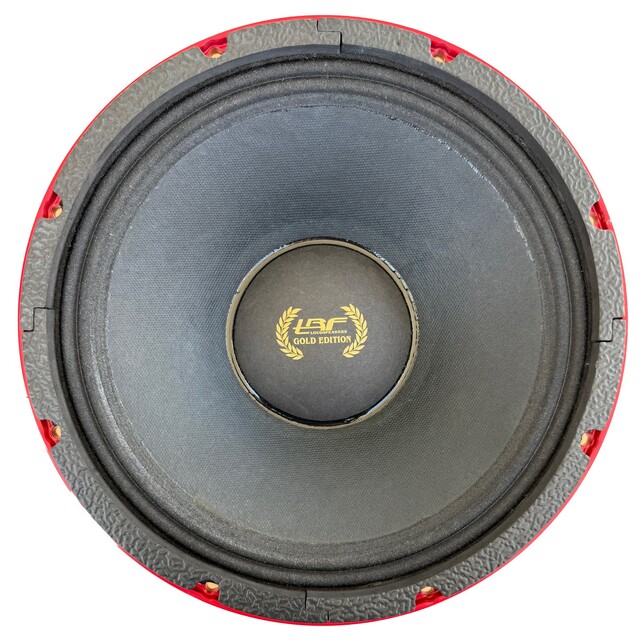

TRF 10MR800ND X4

MODEL: TRF 10MR800ND X4Nominal diameter:10" (254mm)MAX Power Handling:1000WRMS Power Handling:500WFrequency response:70Hz-6.5KHZNominal impedance:4ΩSensitivity: 100.5 dBmagnet: NeodymiumVoice coil diameter:3"Voice coil wire:CCAWEquivalent volume:Vas 25.7LFree Air Resonance:Fs 72 HzMechanical Factor:Qms 3.35Electrical Factor:Qes 0.15Total Factor:Qts 0.14Cone Area:Sd 363cmMechanical Mass:Mms 35gBI Factor:BI 18.4TmDc Resistance:Re 3.1OhmsOverall Diameter:10.3"(262mm)Front Mount Baffle Cutout:9.25"(235mm)Mounting Depth:4.07"(103.5mm)Overall Depth:4.57"(116.2mm)
