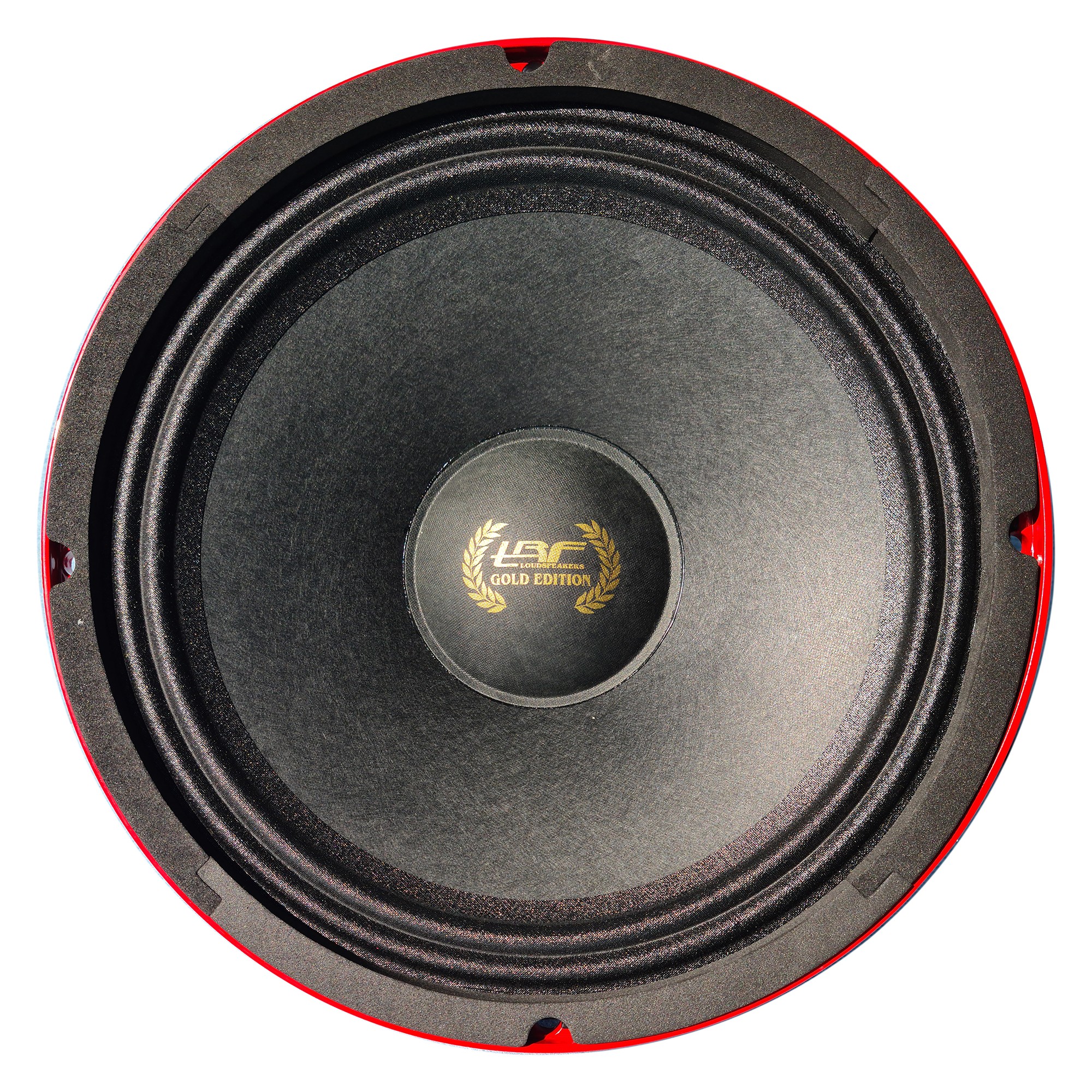

TRF 10MR400ND N

MODEL: TRF 10MR400ND Ν Nominal Diameter:10"(254mm)Max Power Handling:600WRMS Power Handling:300WFrequency Response:70Hz-8KHZNominal impedance:4ΩSensitivity:100 dBMagnet:NeodymiumVoice Coil Diameter:2"Voice coil Wire:CCAWEquivalent volume:Vas 35.6 LFree Air Resonance:Fs 69.8HzMechanical Factor:Qms  5.09Electrical Factor:Qes 0.30Total Factor:Qts:0.28Cone Area:Sd 349.6cmMechanical Mass:Mms 25.3gBI Factor:BI 10.8TmDc Resistance:Re 3.2 OhmsOverall Diameter:10.2"(261mm)Front Mount Baffle Cutout:8.9"(228mm)Mounting Depth:3.62"(92mm)Overall Depth:4.09"(104mm)
