Περιγραφή
| series | CMP |
| type | subwoofer |
| Size | 12 inches |
| nominal impedance | 1+1 |
| power RMS | 8000-20000W |
| Power Max | 16000-40000W |
| playback area | 20–200 Hz |
| voice coil | 4" 8-layer flat aluminum wire |
| membrane | Reinforced Papercone |
| Dustcap | carbon |
| Basket | HD aluminum |
| magnet | 16x N52 neodymium |
| suspension | High roll foam |
Highest precision

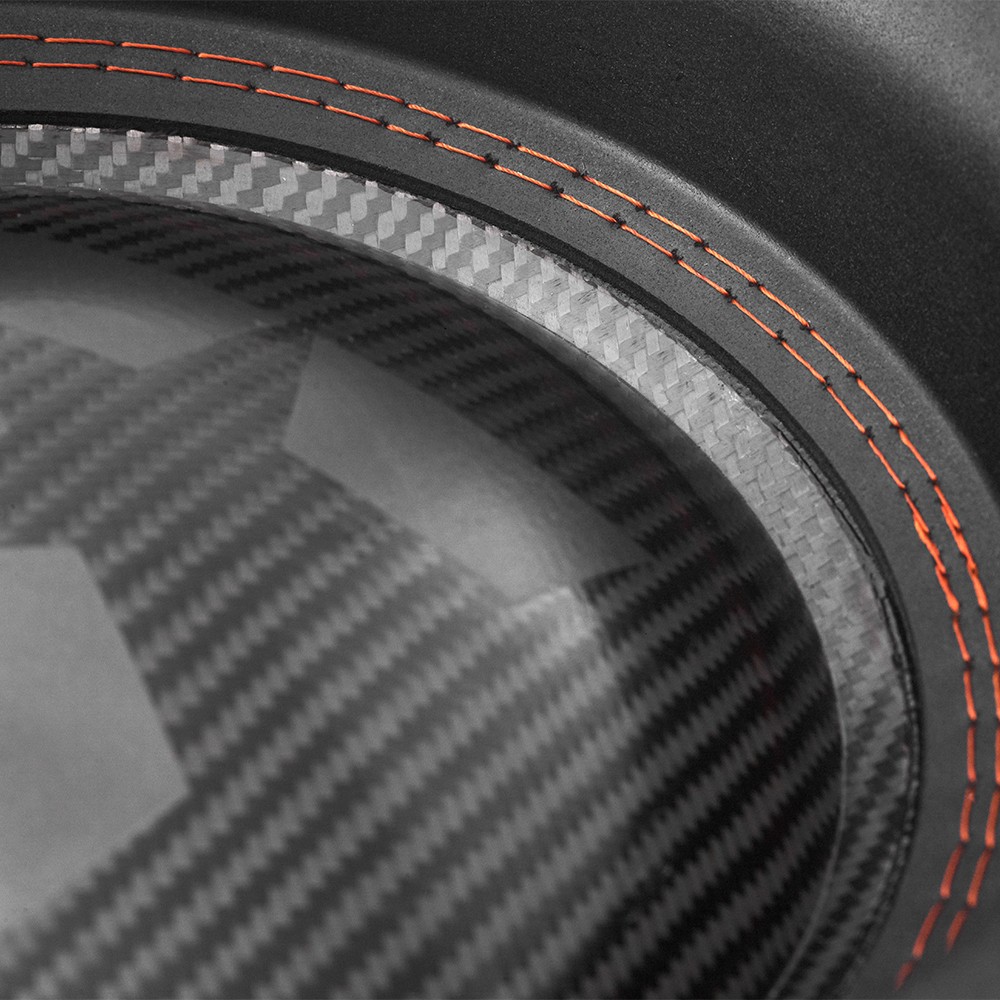

The extremely rigid diaphragm offers uncompromising performance for the highest control and precision, even under the highest pressure. In addition, a custom-made carbon dust cap protects - literally - the 8000 W RMS coil of this beast and ensures that diaphragm deformation is a thing of the past. The result is a subwoofer with extreme rigidity, unparalleled control and outstanding precision.
World-class endurance At
this ultimate level, linearity and accuracy are key. A moving assembly with an elite diaphragm and a premium US-made voice coil (80mm winding height) that must remain perfectly aligned even during extreme excursions. To keep this huge moving mass under control, we implemented a 4-ply Nomex spider pack with orange mesh and a mega-roll surround on top - double stitched to the diaphragm, of course.
Extreme Power Handling

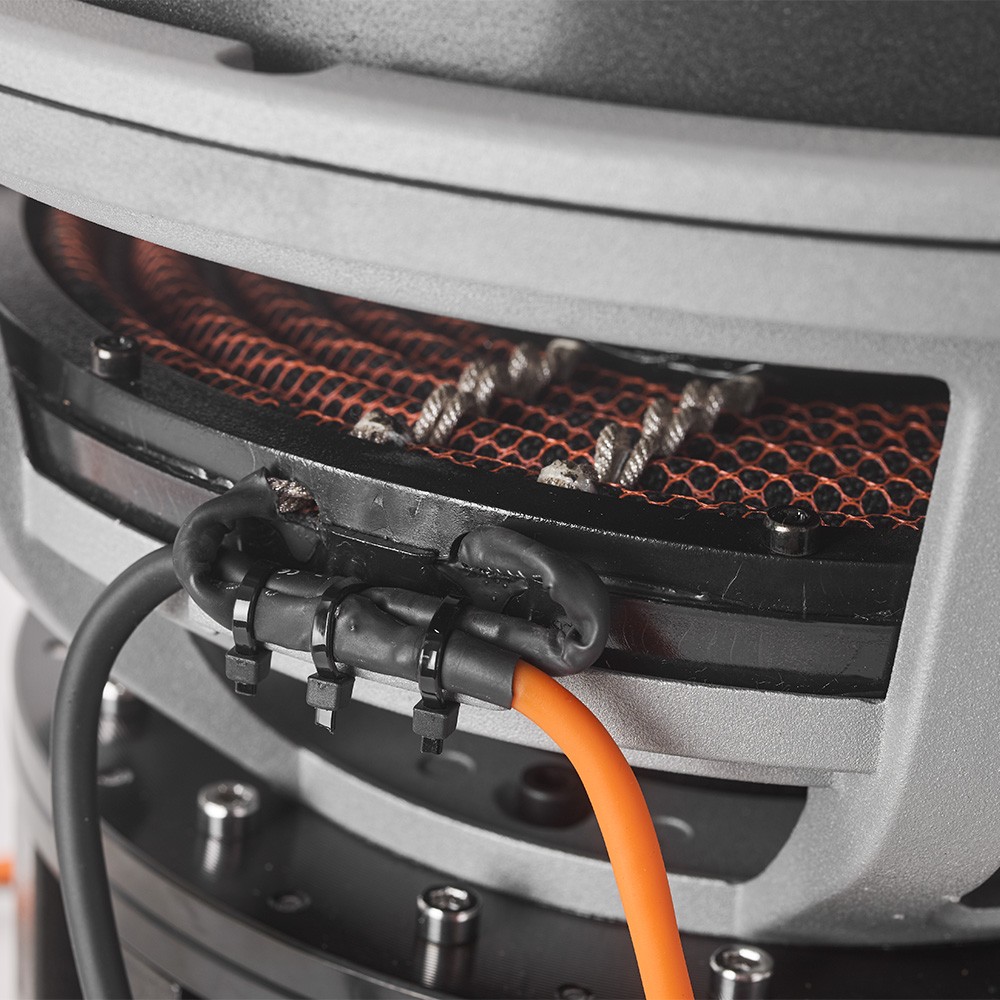

A dual 4" black anodized flat aluminum wire voice coil with 8 layers gives the CMP S3-12D1N extreme power handling and heat dissipation capabilities. They are available in two versions, 1+1 or 0.5+0.5 ohms, for a perfect impedance match to your chosen amplifiers. To achieve the best possible signal transfer and increased durability, two silver-coated feed lines have been sewn into the Spider package. The pre-terminated 10 mm² oxygen-free copper direct leads provide excellent conductivity to ensure a strong and reliable direct connection between the subwoofer coil and your amplifier with no points of additional resistance or poor contact.
Elite Power

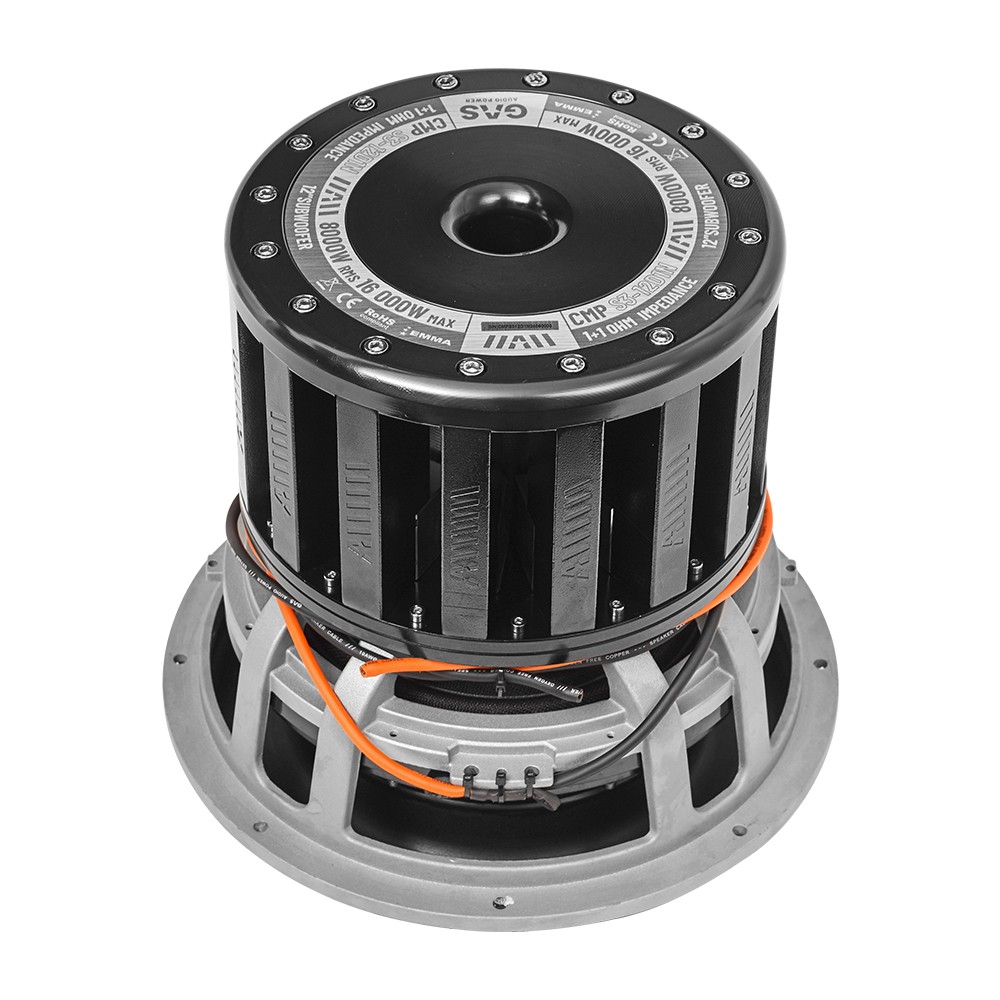

This subwoofer was designed from the ground up for extreme power. The A-Star 16-block high-performance N52 neodymium motor offers a new level of power control along the huge 80mm X-Max for unprecedented performance. In addition, the precisely placed open Neoblock cooling system ensures that the subwoofer can perform at its best even during the most intense competition. The CMP S3-12D1N demands attention and plenty of space, but reward you with an unprecedented level of bass.
